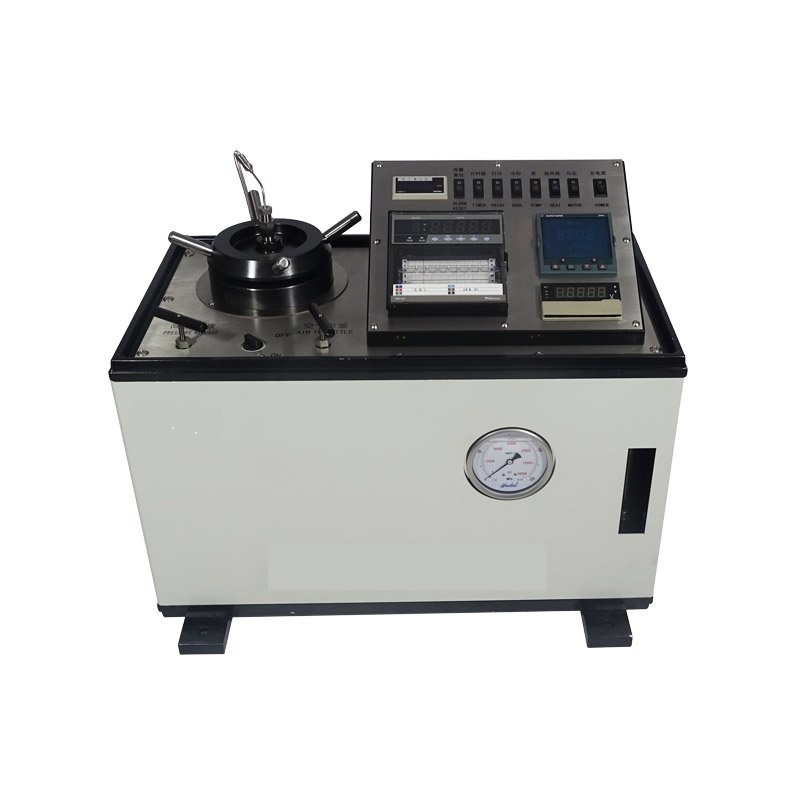

增压稠化仪SX-0716

结构特点：

1、新型水泥浆稠度测量装置、新型电机，该稠度测量方式方便、简洁、易操作，免去调节电位计，清理电位计，校正电位计的过多繁琐步骤。

2、仪器整体结构新颖，节约空间。整机只用一只机械阀门，操作简单，外观整洁。

3、采用英国进口温度控制器实现温度、压力自动控制及稠度测量，控温精准。报警系统实现稠度上限、压力上限、温度超限自动报警，自动停机。

4、多种记录方式：电脑采集数据，通过软件记录温度、压力、稠度，实现曲线、数据处理功能。

5、采用原装进口高压释放阀、高压管线、气液泵、高压表、三通、四通、爆破片，意大利原装进口压力传感器、台湾产减速电机

      STRUCTURAL FEATURES

New type of cement consistency measurement device, the new motor, the consistency of the measurement method is convenient, simple, easy to operate, eliminating the need to adjust the potentiometer, clean up the potentiometer, correction potentiometer too many cumbersome steps.2, the overall structure of the instrument novel, saving space. The machine is only a mechanical valve, simple operation, the appearance of clean.3, the use of British imports of temperature controller to achieve temperature, pressure, automatic control and consistency measurement, accurate temperature control. Alarm system to achieve the upper limit of consistency, pressure limit, temperature overrun automatic alarm, automatic shutdown.4, a variety of recording methods: computer data collection, through the software record temperature, pressure, consistency, to achieve the curve, data processing functions.5, the use of imported high pressure relief valve, high pressure pipeline, gas pump, high pressure table, three links, Stone, bursts, Italy imported pressure sensors, Taiwan production gear motor.6, the use of new national patent (ZL201010233624.X) high pressure oil filter, easy to disassemble, easy to clean.

仪器的主要技术参数：

1、高温度： 315℃

2、高压力： 275MPa

3、高工作温度： 315℃

4、高工作压力： 275MPa

5、电源： AC220V （±10%） 50Hz 4.2kW

6、搅拌转数：150±15 r/min

7、温度控制精度：＜±1℃

8、压力控制精度：＜±0.7MPa

9、温度及压力多段多程序自动控制，大升温速率：3℃/min

10、RS-232通讯接口，PC机数据采集系统

11、体积：56.5×90×185cm

       SPECIFICATIONS

1,Maximum temperature: 315 ℃

2, the maximum pressure: 275MPa

3, the maximum operating temperature: 315 ℃

4, the maximum working pressure: 275MPa

5, power: AC220V (± 10%) 50Hz 4.2kW

6, stirring the number of revolutions: 150 ± 15 r / min

7, the temperature control accuracy: <± 1 ℃

8, the pressure control accuracy: <± 0.7MPa

9, the temperature and pressure multi-step multi-program automatic control, the maximum heating rate: 3 ℃ / min

10, RS-232 communication interface, PC data acquisition system

11, volume: 56.5 × 90 × 185cm
