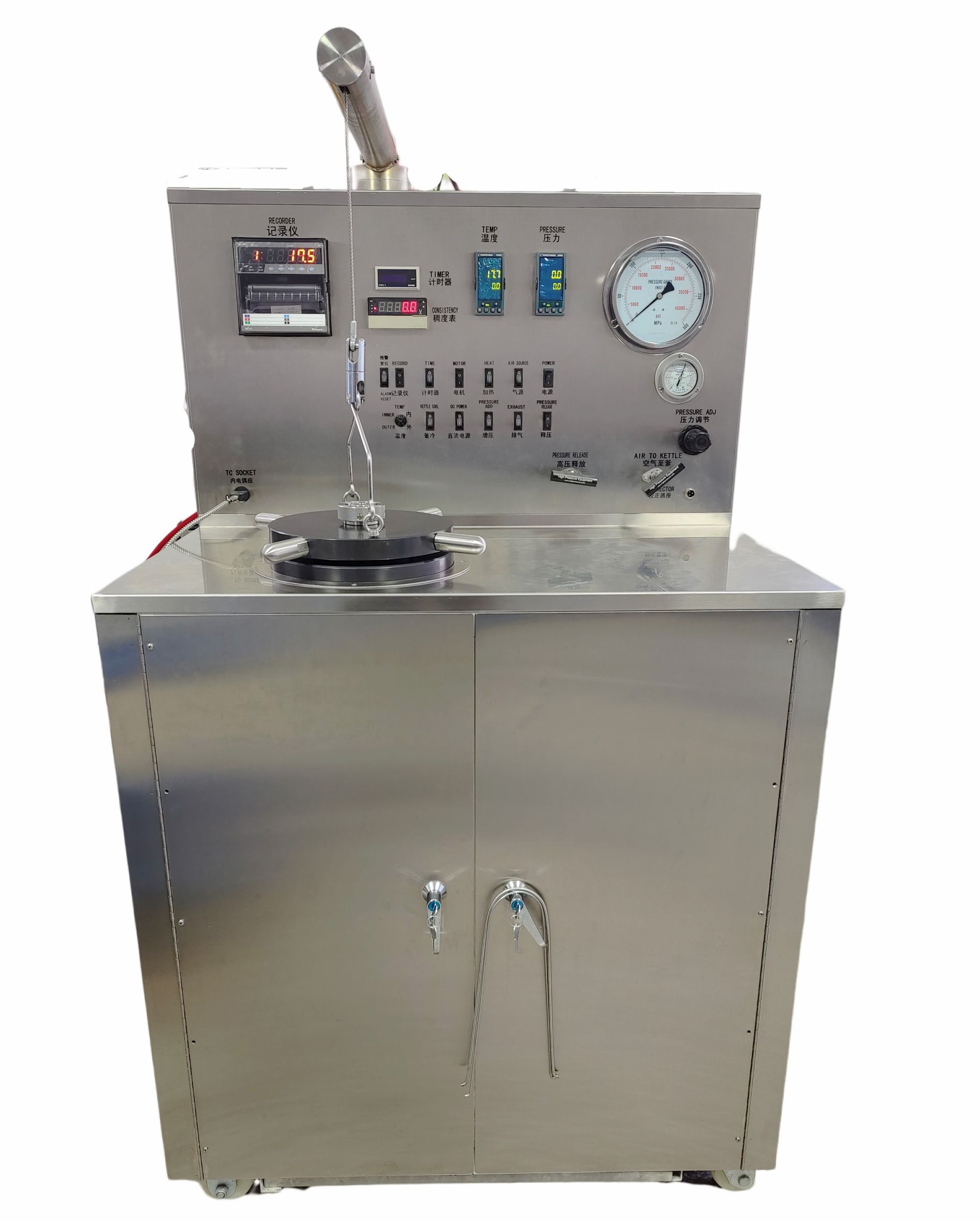

单缸高温高压稠化仪SX-0710

结构特点：

1、仪器结构新颖，节约空间。整机只用一只机械阀门，操作简单，外观整洁。

2、电位计校正装置与整机一体化，方便可靠实用。

3、采用英国进口温度控制器实现温度、压力自动控制及稠度测量，控温精准。报警系统实现稠度上限、压力上限、温度超限自动报警，自动停机。

4、多种记录方式：①采用英国进口三笔记录仪。记录温度、压力、稠度。②电脑采集数据，通过软件记录温度、压力、稠度，实现曲线、数据处理功能。

5、采用原装进口高压释放阀、意大利原装进口压力传感器、高压管线、气液泵、高压表、三通、四通、爆破片，台湾产减速电机。

             STRUCTURAL FEATURES

1.Overall structure of instrument novel design, and save space. Machine only adopting a mechanical valve, simple operation, neat in appearance.

2. Potentiometer correction device and integrated, convenient and practical.

3.Temperature , pressure and consistency are automatically controlled by temperature controller(made in UK), the temperature can be accurately controlled. When consistency, pressure or temperature reaches alarm set point , alarm system will automatically working and shutdown the test.

4.Multiple record modes: ① United Kingdom three recorders which can Record temperature, pressure and consistency.② Temperature, pressure, consistency, curve, data processing functions can be record by software which recorded in computer.

5. Equipped high pressure release pump (made in UK), pressure senor (made in Italy), high pressure pipeline, gas-liquid pump, high pressure gauge,3-way and 4-way joint, busting discs, reducing motor(made in Taiwan).

6. New national patents (ZL201010233624. X) high pressure oil filter, easy to disassemble and clean .

仪器的主要技术参数：

1、高温度： 315℃

2、高压力： 275MPa

3、高工作温度： 315℃

4、高工作压力： 275MPa

5、电源： AC220V （±10%） 50Hz 4.2kW

6、搅拌转数：150±15 r/min

7、温度控制精度：＜±1℃

8、压力控制精度：＜±0.7MPa

9、温度及压力多段多程序自动控制，大升温速率：3℃/min

10、RS-232通讯接口，PC机数据采集系统

11、体积：56.5×90×185cm

          SPECIFICATIONS

1.Maximum Temperature:315℃/600℉

2.Maximum Pressure:275MPa/40,000psi

3.Maximum Working Temperature:315℃/600℉

4.Maximum Working Pressure:275MPa/40,000psi

5.Power: AC 220V(±10%) 50Hz 4.2kW

6.Rotation speed: 150±15r/min

7.Temperature precision: ＜±1℃

8.Pressure precision: ＜±0.7MPa

9.Temperature and pressure automatic controlled by several state,the maximum rate is:3℃/min

10.Connect computer using RS-232 to collect data

11.Volume ：56.5×90×185cm
